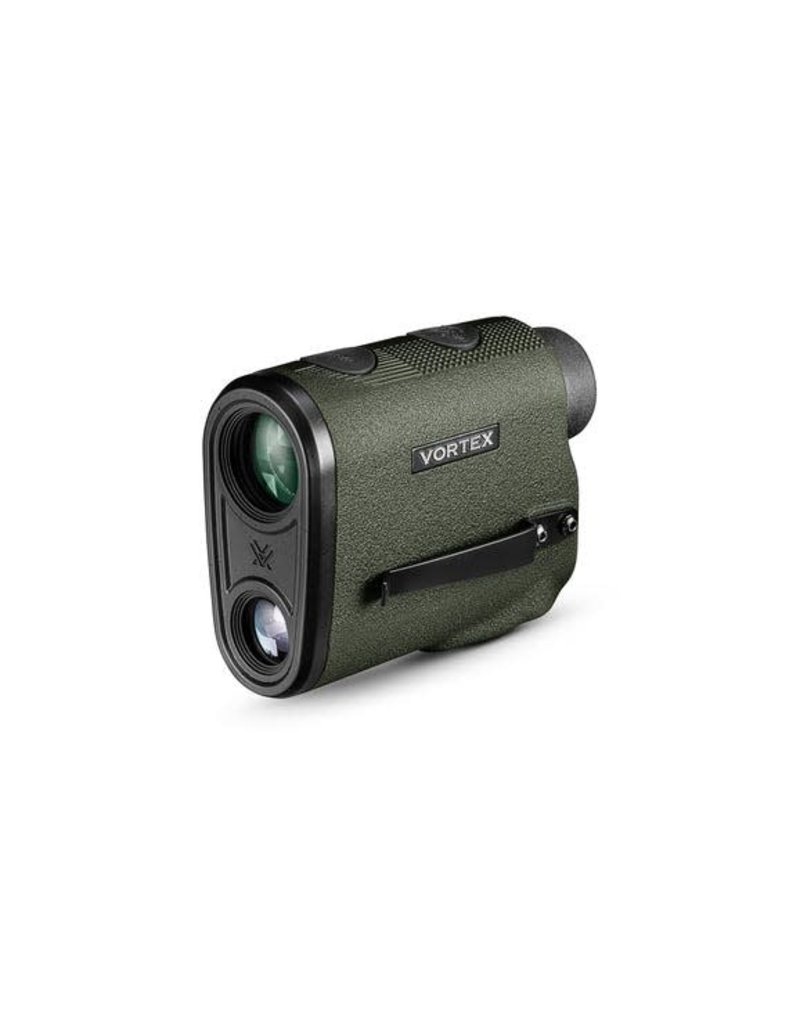

VORTEX DIAMONDBACK HD 2000 LASER RANGEFINDER

Article number:	LRF-DB2000
Availability:	Out of stock

Made for practical hunters who value no-excuses performance, Diamondback HD 2000 is your ranging workhorse in the field. Built tough to withstand the abuse your hardest hunts can dish out, its easy-to-use controls and high-definition optical system handle everything from point-blank shots in tight timber to longer-distance game with shoulder-crushing accuracy. Simple. Tough. Reliable. It's the rangefinder that lives up to its tag-punching promise, hunt after hunt.

• Ranging Modes

  • Horizontal Component Distance (HCD)
    • Displays the slope angle compensated distance to the target
  • Line of Sight (LOS)
    • Displays the actual line of sight range
  • Scan Feature
    • Displays continuous distance readings while panning across a landscape
• Target Modes
  • Normal Mode
    • The standard mode providing the target's range with the strongest range result. Recommended for most situations
  • Last Mode
    • Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc
• HD Optical System
  • Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding coloru fidelity, edge-to-edge sharpness, and light transmission
• ArmorTek
  • Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt
• Red OLED Display
  • Optimized for low light
• Diopter
  • Adjusts for differences is an user's eyes. Located on eyepiece
• Shockproof
  • Designed to withstand the highest levels of impact
• XR Plus Lens Coatings
  • Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance
• Rubber Armor
  • Provides a secure, non-slip grip, and durable external protection
• Ranging Format
  • Range in yards or meters
• Waterproof
  • Designed to withstand harsh weather conditions
• Tripod Adaptable
  • Allowing use on a tripod or car window mount. Tripod adapter may be required



Magnification	7x
Objective Lens Diameter	24mm
Eye Relief	16.0mm
Angular Field of View	6.4°
Linear Field of View	335' @ 1000 yds
Range Reflective (yards)	Up to 2,000 yds
Range Tree (yards)	Up to 1,800 yds
Range Deer (yards)	1,400 yds
Min Range	5 yds
Accuracy	1 yds @ 100 yds
Length	4.1"
Height	3.1"
Width	1.8"
Weight	7.6 oz
Max Angle Reading	+/- 60°
